Installation Guide

Plate Relocation Kit Fitment Manual
⚠

Warning: This product is designed to be fastened using only the included hex key. Use of power tools will void warranty and may damage the product. Any form of misuse or accidental damage is not covered by Plate Relocate AU.

Package Contents

  • 2 x Plate Relocation Brackets with pre-inserted nutsets
  • 2 x M4 Bracket Adjustment Bolts
  • 2 x M5 Plate Mounting Bolts
  • 1 x 3mm Hex Key

24-Month Warranty

All kits are covered by an extensive 2-Year Hardware Guarantee.

Reach out to your dealer network supplier first to log a replacement order layout. If required, our direct channels can step in to assist where necessary.

1

Step 1: Prepare the Bracket

Begin by pressing the M4 adjustment bolt inward. This will push the rear clamping mechanism out, giving you the clearance needed to mount the bracket.

Step 1
2

Step 2: Install the Bracket

Catch the front hook of the bracket onto the leading edge of your grille fin. Next, gently push backward to snap the extended rear section securely over the back edge of the fin.

Step 2
3

Step 3: Secure the Brackets

Grab the supplied hex key and turn the M4 adjustment bolt clockwise. Tighten until the bracket grips the grille fin firmly and sits flush. Be careful not to apply excessive force.

Step 3
4

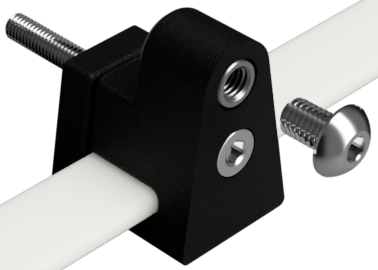

Step 4: Remove Plate Screws

Using your hex key again, turn the front M5 mounting bolts counter-clockwise to back them out. Remove them entirely and set them aside safely.

Step 4
5

Step 5: Mount Your Number Plate

Line up your number plate with the bracket's mounting holes. Thread the M5 bolts back in and tighten them down securely to hold your plate.

📸

Step 6: Share with us!

Snap a photo and tag us on Instagram so we can feature your ride: @platerelocate.au
